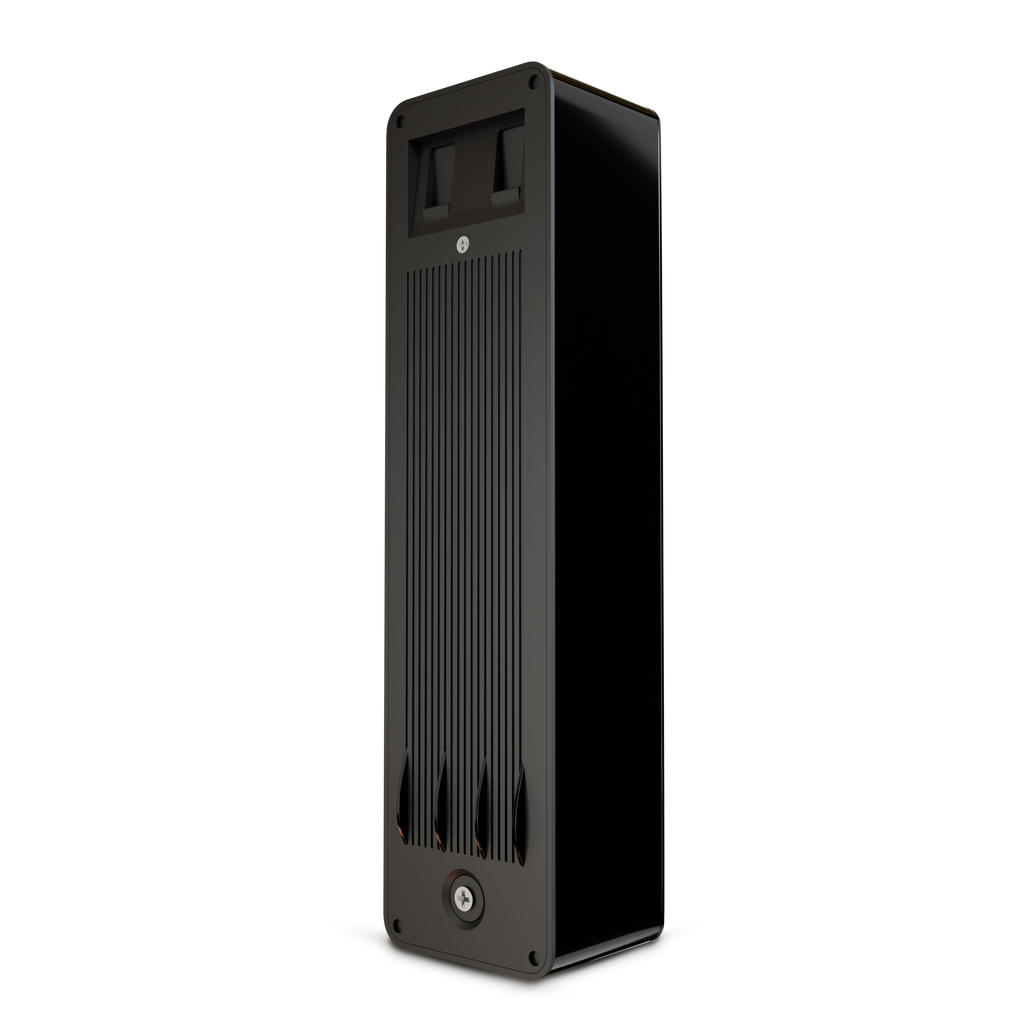

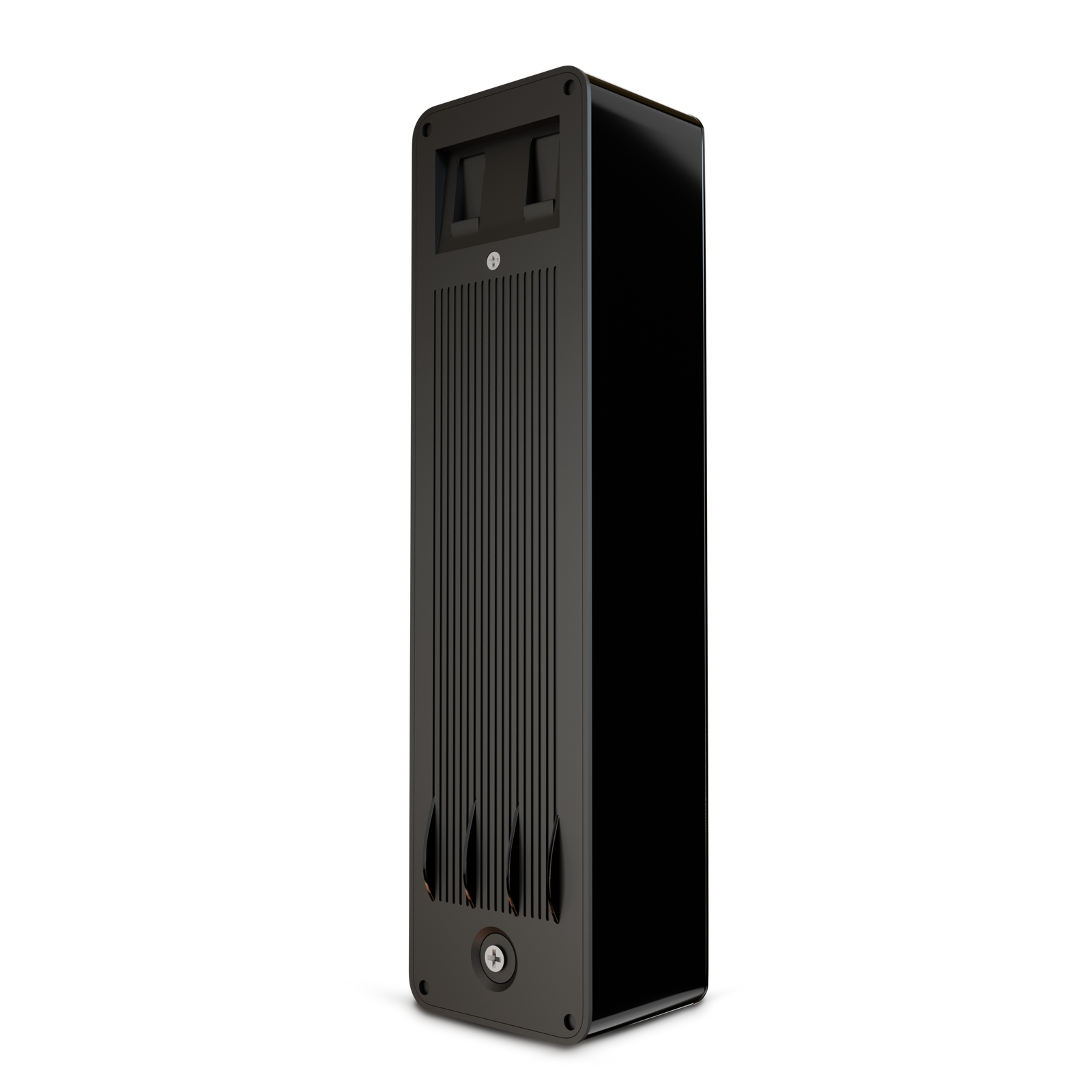

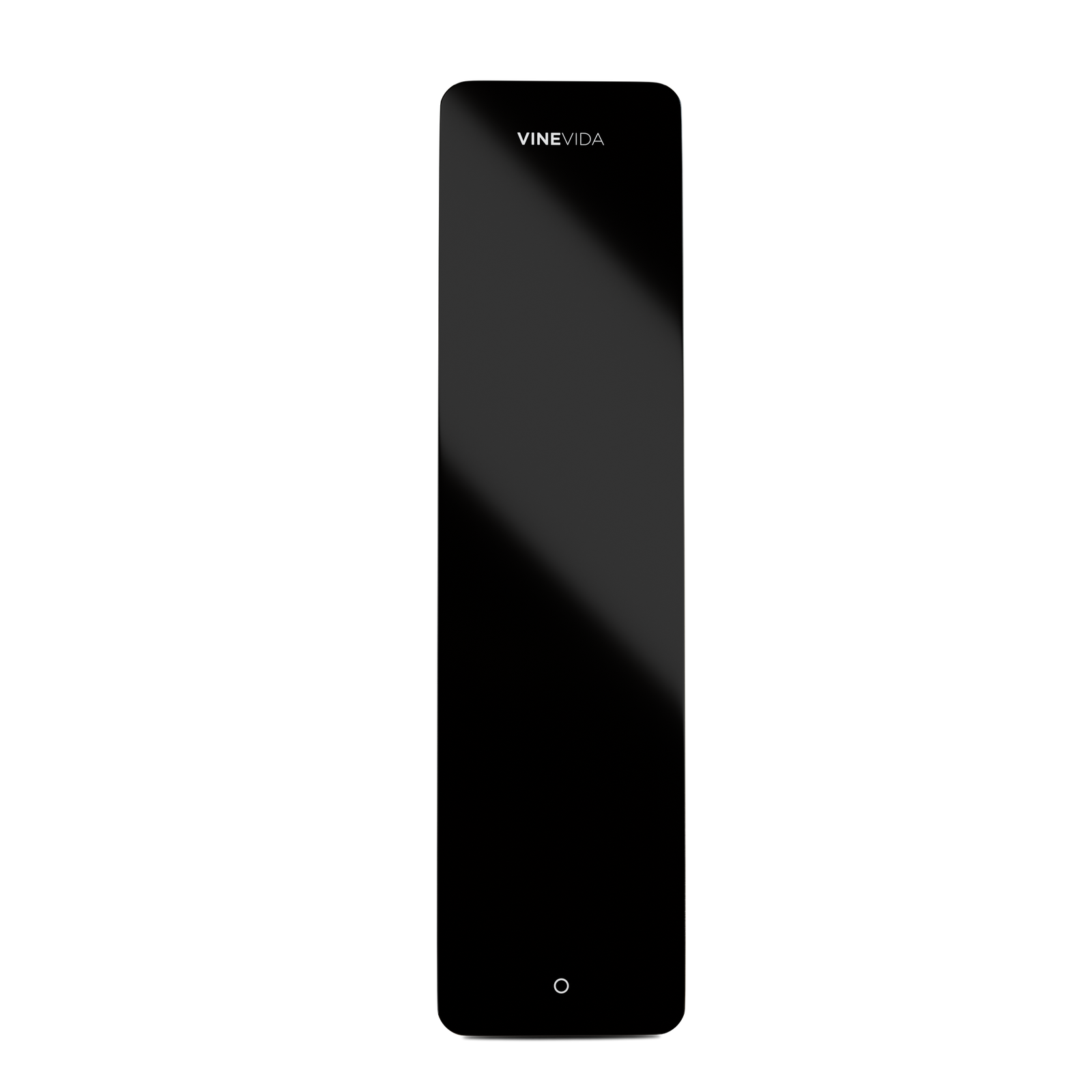

V10 Summit BT Standalone Diffuser

V10 Summit BT

Elevate the ambiance of your space with the "V10 Summit BT," a versatile diffuser that combines sleek design with advanced technology. This model is engineered to deliver a superior sensory experience in a variety of settings, making it an ideal choice for both home and commercial environments.

Product Specifications

• Coverage: 10000 ft²

• Size: 6.0" x 4.2" x 23.0" | 152 x 108 x 584 mm

• Net Weight: 8.7 lbs | 3941 g

• Oil Container Capacity:  33 fl oz | 1000 ml

Key Features:

• Advanced Cold Air Diffusion Technology: Utilizes a high-performance system to nebulize essential oils into a micro-fine mist, dispersing delightful scents evenly without the use of heat, preserving the therapeutic properties of the oils.
• Plug-In Functionality: Offers hassle-free setup with plug-in convenience, ensuring continuous operation without the need for frequent refills or battery replacements.
• Standalone Capability: Designed with a robust and stylish structure that stands elegantly on its own, making it a perfect fit for any room or decor style.
• Bluetooth Connectivity: Features smart Bluetooth technology that allows for easy control over the diffusion settings through your smartphone, ensuring your environment is always scented just right.
• Whisper-Quiet Operation: Operates silently, providing a subtle yet effective scenting solution that enhances spaces without disturbance.
• Covers up to 10000 ft²
• Customizable Intensity Levels: Comes with adjustable settings to tailor the scent output for different room sizes or preference, ensuring perfect coverage regardless of the space.

• Grade	Consumption (g/h)	Working Time (sec)	Stop Time (sec)
  G1	0.13	15s	300s
  G2	0.40	15s	150s
  G3	0.75	20s	120s
  G4	0.95	20s	85s
  G5	1.10	25s	80s
  G6	1.41	30s	75s
  G7	1.58	30s	60s
  G8	1.84	30s	50s
  G9	2.00	30s	40s
  G10	2.23	30s	33s
  G11	2.54	33s	30s
  G12	2.87	40s	30s
  G13	3.40	50s	30s
  G14	3.68	60s	30s
  G15	4.20	75s	30s
  G16	4.24	80s	25s
  G17	4.50	85s	20s
  G18	4.71	120s	20s
  G19	4.80	150s	15s
  G20	5.00	300s	15s
  Custom	—	5–500s	5–500s

Bluetooth Setup

• Download the VINEVIDA app from the Apple App Store or Google Play Store.
• Enable Bluetooth on your mobile device.
• Turn on your device's Location Services to allow the app to discover the diffuser.
• Use the app to manage schedules, intensity settings, and other diffuser controls.
• If you forget your password, restore the factory settings by pressing the Reset button. The default password is 8888.

When to Clean Your Machine?

Clean your diffuser:

• You are ready to diffuse a new fragrance.

• The fragrance throw becomes weak.

• At least once a month, for best practice.

Cleaning Instructions

• Unscrew the lower casing and unscrew the oil container.
• Let the oil container soak in 99% rubbing alcohol for 15 min.
• Fill the oil container with 20ml of 99% rubbing alcohol and let the machine run for 15 min.
• Unscrew the oil container, empty it, and let it air-dry for 15 minutes.

The "V10 Summit BT" diffuser is the perfect addition to any setting where the ambiance is a priority. It offers effortless integration, stylish aesthetics, and the efficiency to maintain a fresh, inviting atmosphere day and night.

Important Notes

• Keep the diffuser in a vertical position during operation.

• Use indoors only.

• Keep away from water and heat sources.

• Use only the supplied power equipment.

• Allow the diffuser to cool for at least 30 minutes before moving, refilling, or cleaning.

• Pour fragrance oil only into the provided container.

• Unplug the diffuser before cleaning and during extended periods of non-use.

• Keep out of reach of children and supervise use by children or individuals with reduced physical, sensory, or mental capabilities.


Warranty & Support

This product includes a 6-month limited warranty covering manufacturing defects under normal use. As part of our support process, basic troubleshooting (which may include submitting a short video) is required before any return, refund, or replacement can be approved. For full warranty details and troubleshooting steps, please refer to the product manual available in the "Documents" section.
